Models and Fields

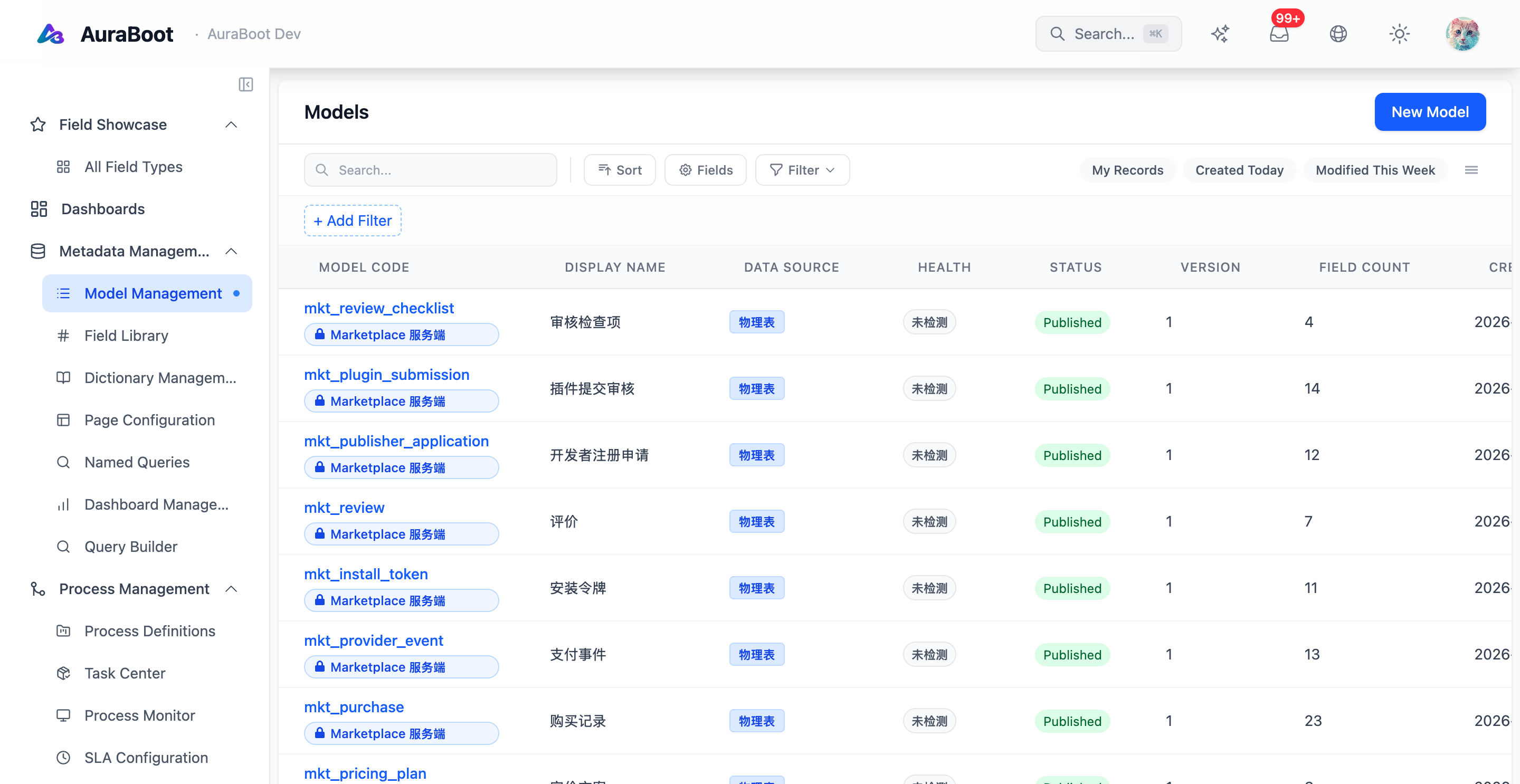

Model management

Models are the foundation of every AuraBoot application. A model describes the business data you want to store or display. From that definition AuraBoot can create tables, expose dynamic APIs, render form fields, validate inputs, and bind permissions.

Model types

AuraBoot uses different model types for different data responsibilities:

Type	Physical table	Typical use
`entity`	Yes	Customer, order, task, invoice, lead
`view`	No	Query-backed read-only list or detail projection
`tree`	Yes	Hierarchical data (categories, org structure)
`virtual`	No	Model without a physical table

Most business modules start with entity models. View models become useful when you need read-optimized screens, reports, dashboards, or composed data from multiple sources.

Model definition

A simple entity model looks like this:

{
  "code": "crm_lead",
  "name": "Lead",
  "modelType": "entity",
  "tableName": "mt_crm_lead",
  "description": "Sales lead tracking",
  "fields": [
    { "code": "lead_name", "name": "Lead Name", "dataType": "string", "required": true },
    { "code": "email", "name": "Email", "dataType": "string", "unique": true },
    { "code": "status", "name": "Status", "dataType": "enum", "dictCode": "crm_lead_status" }
  ]
}

Property	Required	Description
`code`	Yes	Stable model identifier, usually snake_case
`name`	Yes	Human-readable label
`modelType`	Yes	entity, view, tree, or virtual
`tableName`	No	Physical table name; can be generated
`description`	No	Business purpose and usage notes
`fields`	Yes	Field definitions rendered by API and UI

Field types

Data Type	Storage	UI behavior	Example
`string`	varchar	Single-line input	Name, title
`text`	text	Multi-line input	Notes, description
`integer`	bigint	Number input	Quantity
`decimal`	numeric	Decimal input	Amount, price
`money`	numeric	Multi-currency amount	Price, contract amount
`boolean`	boolean	Switch or checkbox	Active flag
`date`	date	Date picker	Due date
`datetime`	timestamp	Date-time picker	Event time
`enum`	varchar	Select, radio, badge (with `dictCode`)	Status
`reference`	bigint	Searchable picker	Assigned user
`json`	jsonb	Structured object	Extension attributes
`computed`	virtual	Read-only display	Total amount

The field type is not only a database decision. It also influences validation, generated UI controls, filters, sorting, display formatting, and API payload handling.

Dictionaries

Use dictionaries when a field has a controlled set of values:

{
  "code": "crm_lead_status",
  "name": "Lead Status",
  "items": [
    { "value": "new", "label": "New", "sortNo": 1 },
    { "value": "contacted", "label": "Contacted", "sortNo": 2 },
    { "value": "qualified", "label": "Qualified", "sortNo": 3 },
    { "value": "lost", "label": "Lost", "sortNo": 4 }
  ]
}

Dictionary values are useful for statuses, categories, priority, source, region, and other values that should be consistent across forms, lists, filters, dashboards, and workflows.

Reference fields

Reference fields connect models:

{
  "code": "assigned_to",
  "name": "Assigned To",
  "dataType": "reference",
  "referenceModelCode": "sys_user",
  "refDisplayField": "display_name"
}

References are used by list columns, detail pages, sub-tables, permissions, workflows, and reports. A common pattern is a parent model with child records:

crm_account
  -> crm_contact.account_id
  -> crm_opportunity.account_id
  -> crm_activity.account_id

System fields

AuraBoot adds standard system fields to managed entity tables:

Field	Purpose
`id`	Internal primary key
`pid`	Stable public identifier
`tenant_id`	Tenant isolation
`created_at`	Creation timestamp
`updated_at`	Last update timestamp
`created_by`	Creator user
`updated_by`	Last modifier

Do not duplicate these fields in your model JSON. Use them in filters, audit views, and integrations when needed.

Design guidelines

Prefer stable, business-readable model codes such as crm_lead or pm_task.
Keep field codes stable after data exists. Renaming fields is a migration.
Use dictionaries for states that drive workflows.
Use reference fields instead of copying display names across records.
Add descriptions for fields that have business meaning beyond their label.
Start with entity models; introduce view models only when a screen or report needs a composed projection.

Next steps

Commands - Define operations on your models.
Pages and Layouts - Render models as UI.
Plugin Development - Package models into reusable modules.
